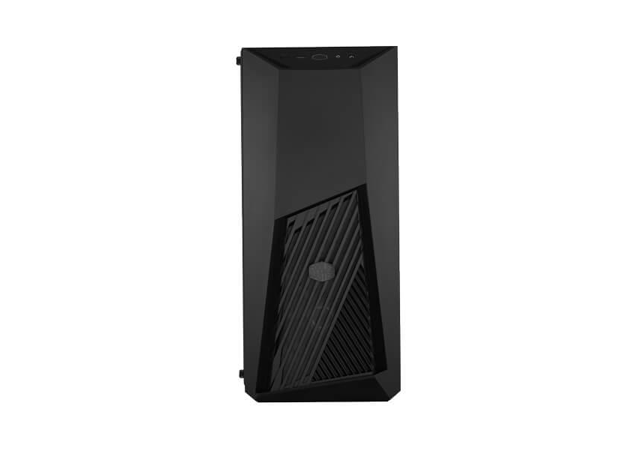

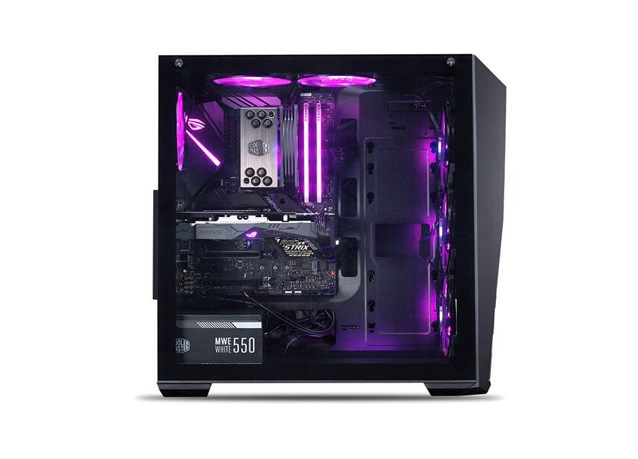

COOLER MASTER MASTERBOX K501L RGB (ATX) MID TOWER CABINET WITH TEMPERED SIDE PANEL (BLACK)
Cooler Master MasterBox K501L
Brands : COOLER MASTER
Product Code : MCB-K501L-KGNN-SR1
Availability : In Stock
Description
- SERIES : MASTERBOX
- TYPE : MID TOWER
- 5.25" BAYS : 0
- 3.5" BAYS : 2
- 2.5" BAYS : 2
- EXPANSION SLOTS : 7
- MAX RADIATOR SUPPORT : 360
- MAX FAN SUPPORT : 6
- COLOR : BLACK
- SIDE PANEL : TRANSPARENT
Specifications
- Model : MCB-K501L-KGNN-SR1
- Exterior Color : Black
- Materials
- Exterior : Plastic
- Side Panel : Tempered
- Dimensions (L x W x H)
- incl. Protrusions : 499.5mm x 217mm x 468.5mm
- excl. Protrusions : 428.7mm x 205mm x 458.5mm
- Volume (Liters excl. Protrusions) : 50.8L
- Motherboard Support : Mini-ITX，Micro-ATX，ATX
- Expansion Slots : 7
- Drive Bays
- 5.25" ODD : 0
- 3.5" HDD : 2 (Max.3)
- 2.5" SSD : 2 (Max.3)
- I/O Panel
- USB Ports : USB 3.2 Gen1 x 1 (USB 3.0) USB 2.0 x 1
- Audio In / Out : 1 x 3.5mm Audio Jack 1 x 3.5mm Mic Jack
- Other : N/A
- Pre-installed Fan(s)
- Top : N/A
- Front : 120mm x 1 (RGB)
- Rear : 120mm x 1 （Black)
- Bottom : N/A
- Fan Support
- Top : 120mm x 2，140mm x 2
- Front : 120mm x 3，140mm x 2
- Rear : 120mm x 1
- Bottom : N/A
- Radiator Support
- Top : 120mm, 240mm
- Front : 120mm, 140mm，240mm, 280mm，360mm
- Rear : 120mm
- Bottom : N/A
- Clearances
- CPU Cooler : 165mm
- Power Supply : 390mm (without radiator and HDD installed) 200mm (with radiator and HDD installed)
- Graphics Card : 410mm (without radiator installed) 360mm (with radiator installed)
- Cable Routing
- Behind MB Tray : 19～27mm
- Dust Filters : Top, Front, Bottom
- Power Supply Support : ATX PS2
- Warranty : 3 Years
