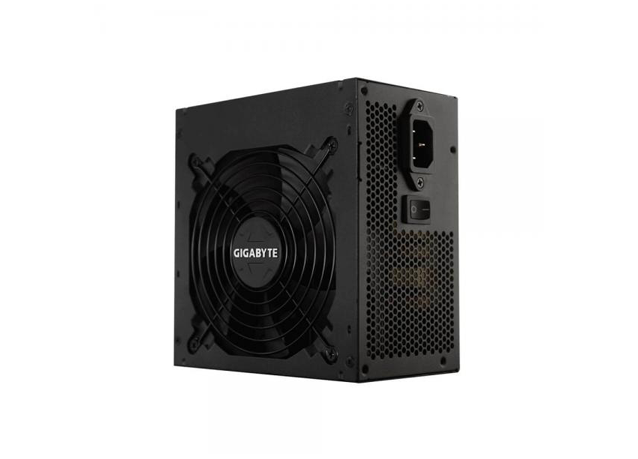

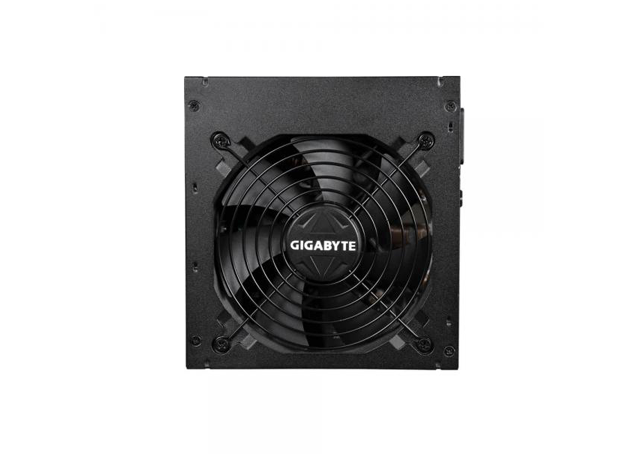

GIGABYTE B700H SMPS - 700 WATT 80 PLUS BRONZE CERTIFICATION PSU WITH ACTIVE PFC
Gigabyte B700H
Brands : GIGABYTE
Product Code : B700H
Availability : In Stock
Description
- Wattage : 700 Watt
- Certification : 80+ BRONZE
- PCIe Connector (6+2) : 4
- SATA Connector : 7
- Peripheral (4-Pin) : 3
Specifications
- Model : B700H
- Type : Intel Form Factor ATX 12V v2.31
- PFC : Active PFC (>0.9 typical)
- Input Voltage : 00-240 Vac (full range)
- Input Current : 10A
- Input Frequency : 47-63 Hz
- Output Capacity : 700W
- Dimensions : D140 x W150 x H86mm
- Fan Size : 120mm Double ball bearing fan
- Efficiency : 85% @ Typical Load
- MTBF : >100,000 hours
- Protection : OVP / OPP / SCP / UVP
- Regulatory : CE / BSMI / EAC / TUV / FCC / UL / RCM / KCC / CCC
- MB 20+4 Pin : x1
- CPU 4+4 Pin : x1
- PCI-e 6+2 Pin : x4
- SATA : x7
- 4Pin Peripheral : x3
- 4Pin Floppy : x1
- Cable Type : Black Flat Cables
- Warranty : 5 Years
