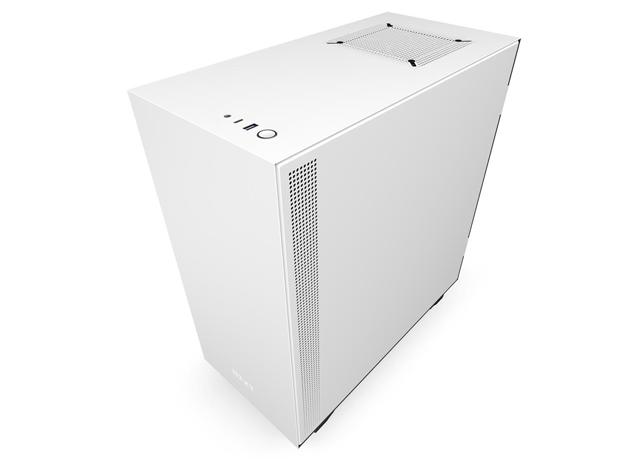

NZXT H510 - Compact ATX Mid-Tower PC Gaming Case - Front I/O USB Type-C Port - Tempered Glass Side Panel - Cable Management System - Water-Cooling Ready - Steel Construction - White/Black, CA-H510B-W1
NZXT H Series H510
» Front I/O USB Type-C Port and Tempered glass side panel with single screw installation
» ENHANCED CABLE MANAGEMENT: Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive
» STREAMLINED COOLING: Two Aer F120mm fans included for optimal internal airflow and the front panel and PSU intakes include removable filters, removeable bracket designed for radiators up to 240mm - simplifies the installation of either closed-loop or custom-loop water cooling
» MOTHERBOARD SUPPORT: Mini-ITX, MicroATX, and ATX
Specifications
- Brand : NZXT
- Series : H Series H510
- Model : CA-H510B-W1
- Type : ATX Mid Tower
- Color : Matte White / Black
- Case Material : SGCC Steel / Tempered Glass
- With Power Supply : No
- Power Supply Mounted : Bottom
- Motherboard Compatibility : Micro ATX / ATX / Mini-ITX
- Side Panel Window : Yes
- Dust Filters : Bottom / Front
- Internal 3.5" Drive Bays : 2+1
- Internal 2.5" Drive Bays : 2+1
- Expansion Slots : 7
- Front Ports : 1 x USB 3.0 Type-A / 1 x USB 3.1 Gen 2 Type-C / 1x Headset audio Jack
- Fan Options : Front: 2 x 120mm or 2 x 140mm fan
Top: 1 x 120mm (1 x 120mm Aer F120 Case Version included) or 1 x 140mm fan
Rear: 1 x 120mm fan (1 x 120mm Aer F120 Case Version included)
Fan Specs: Aer F120 (Case Version)
Speed: 1200 +/- 200 RPM
Airflow: 50.42 CFM
CFM Noise: 28 dBA
Bearing: Rifle Bearing - Radiator Options : Front: 2 x 140mm or 2 x 120mm with Pull
Rear: 1 x 120mm - Max GPU Length : 381 mm
- Max CPU Cooler Height : 165 mm
- Max PSU Length : 275 mm
- Dimensions (H x W x D) : 18.11" x 8.27" x 16.85" w/ feet
17.13" x 8.27" x 16.85" w/o feet - Weight : 14.55 lbs
