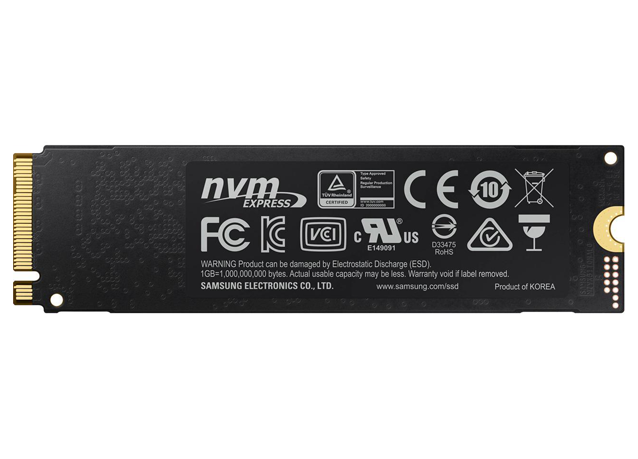

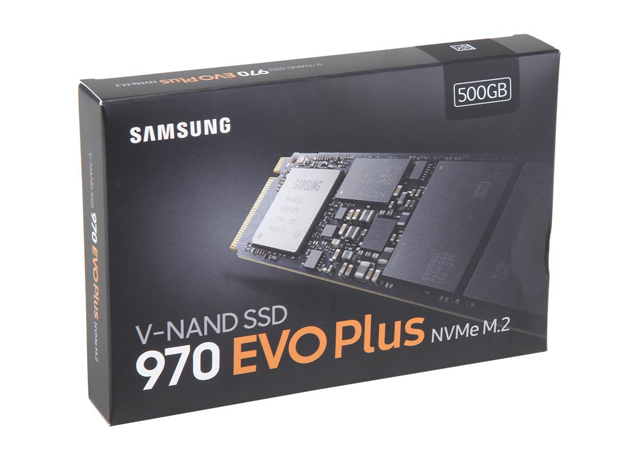

SAMSUNG 970 EVO PLUS 500GB Internal Solid State Drive (SSD) MZ-V7S500B/AM

Samsung 970 EVO Plus 500GB

» M.2 2280
» 500GB
» PCIe Gen 3.0 x4, NVMe 1.3

Specifications

  • Brand : SAMSUNG
  • Series : 970 EVO PLUS
  • Model : MZ-V7S500B/AM
  • Device Type : Internal Solid State Drive (SSD)
  • Used For : Consumer
  • Form Factor : M.2 2280
  • Capacity : 500GB
  • Memory Components : V-NAND 3-bit MLC
  • Interface : PCIe Gen 3.0 x4, NVMe 1.3
  • Controller : Samsung Phoenix
  • Cache : Samsung 512MB Low Power DDR4 SDRAM
  • Max Sequential Read : Up to 3500 MBps
  • Max Sequential Write : Up to 3200 MBps
  • 4KB Random Read : QD32: Up to 480,000 IOPS
    QD1: Up to 19,000 IOPS
  • 4KB Random Write : QD32: Up to 550,000 IOPS
    QD1: Up to 60,000 IOPS
  • MTBF : 1,500,000 hours
  • Power Consumption (Idle) : Max. 30 mW
  • Power Consumption (Active) : Average: 5.8W
    Maximum: 9W (Burst mode)
  • Operating Temperature : 0°C ~ +70°C
  • Max Shock Resistance : 1,500G & 0.5 ms (Half sine)
  • Height : 2.38mm
  • Width : 22.15mm
  • Depth : 80.15mm
  • Weight : 8.00g
